This article explains how to install a Prowise Touchscreen Ten G4 touchscreen and enrol it in Prowise Screen Control using a registration token.
If firmware 1.0.351 is already installed, you can reset the screen and continue at step 7.
-
Download Central 7.1 (firmware 1.0.351) via WeTransfer:
https://we.tl/t-68cnlRdeOy - Copy the file to a USB stick (Fat32)
- Make sure the screen is in standby (red LED).
-

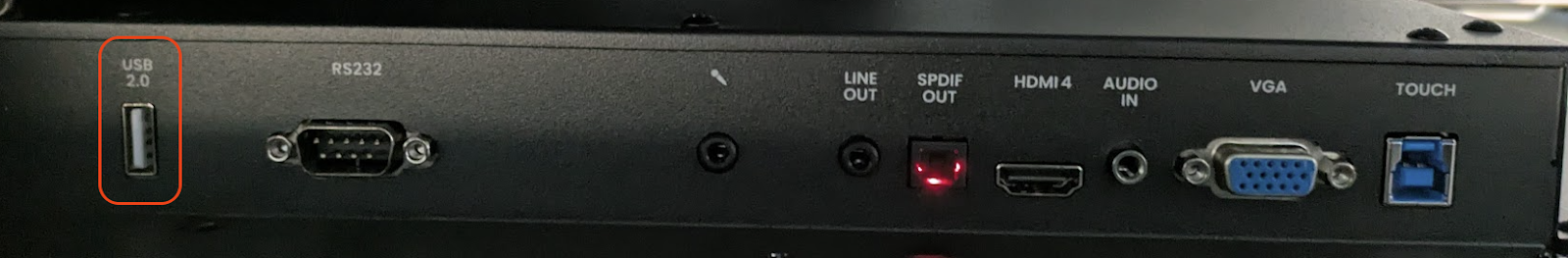

Connect the USB stick to the USB 2.0 port on the left side (back) of the screen:
-

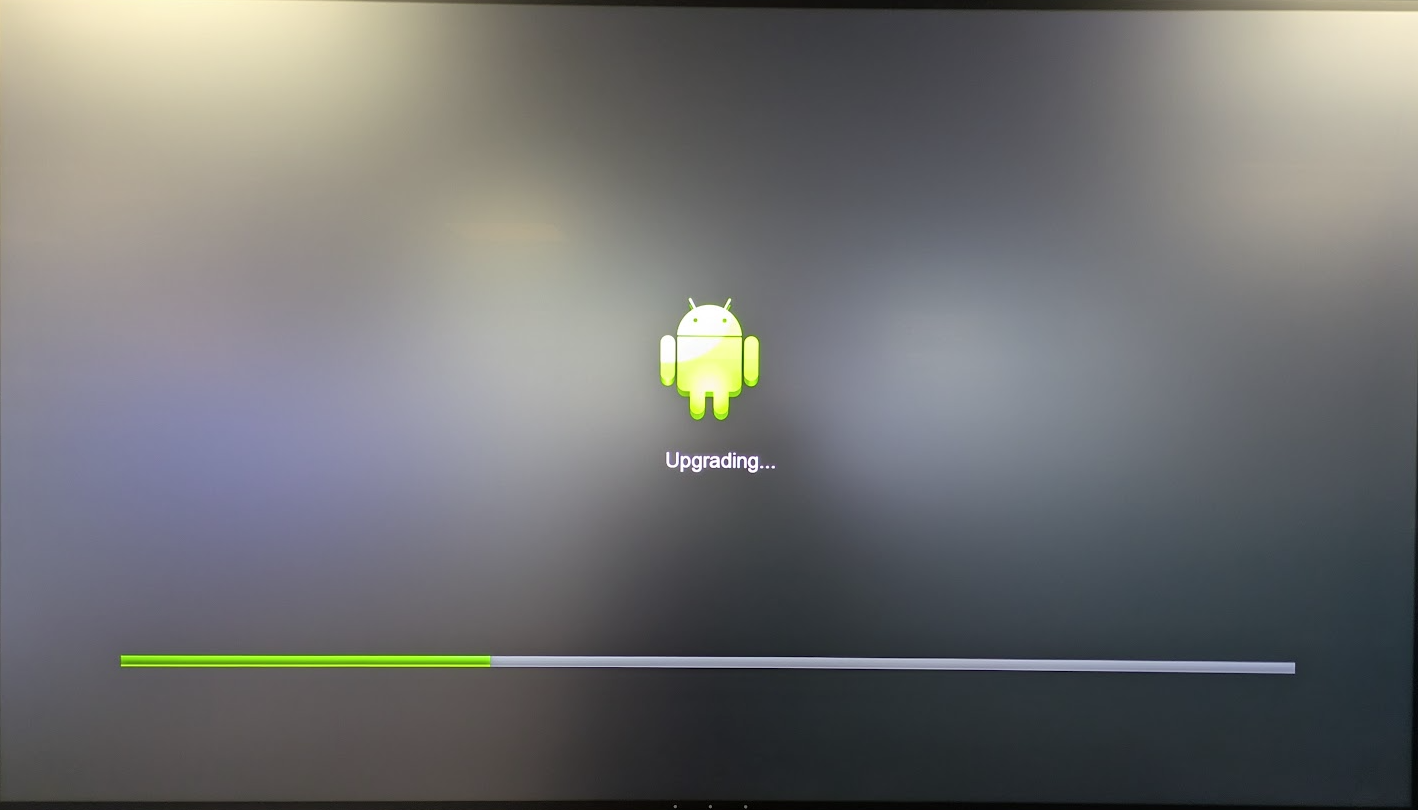

Turn on the screen by pressing and holding the power button until the upgrade screen appears (± 20 seconds)
-

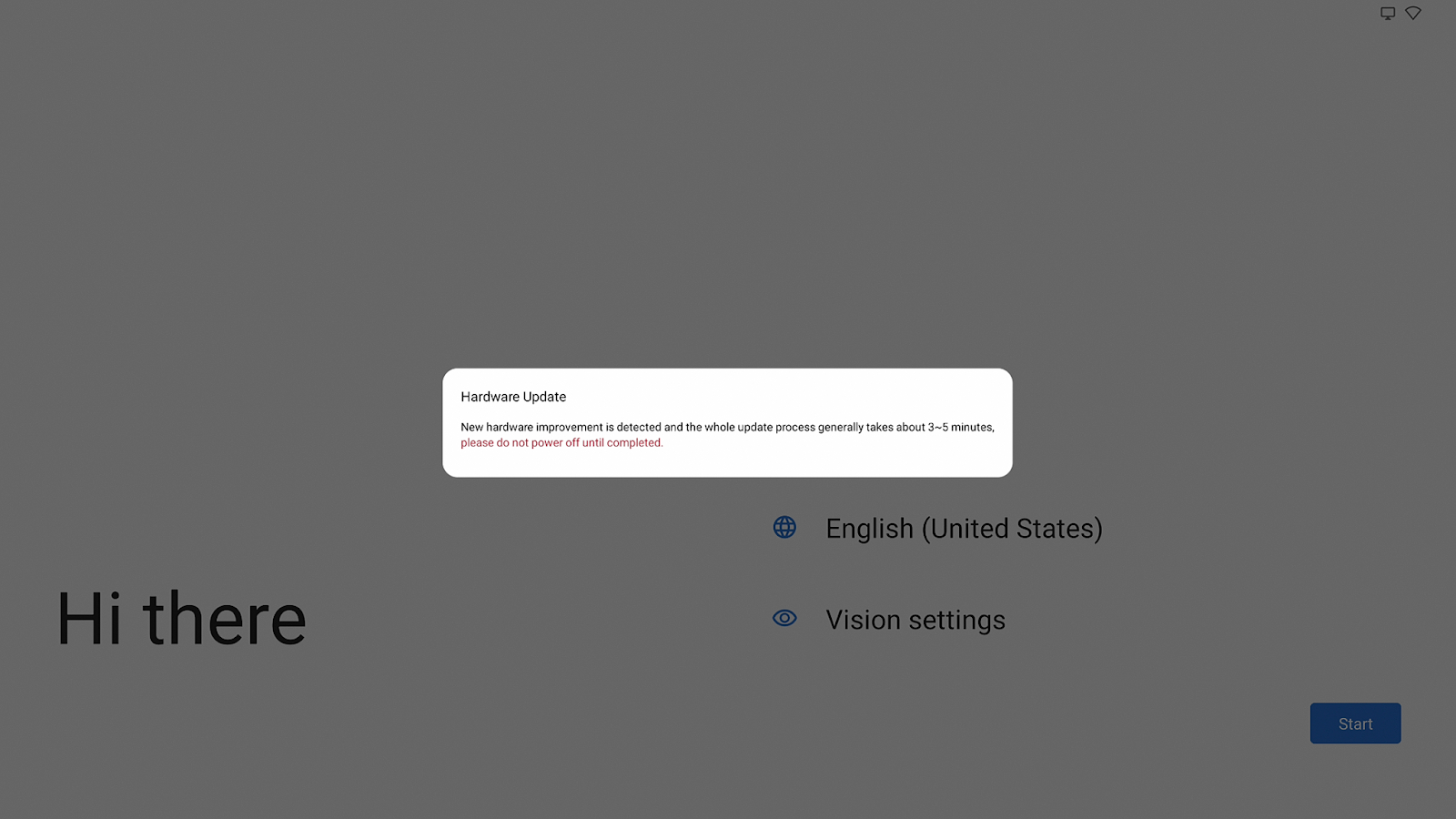

After the update is installed, the screen will restart and the hardware will be updated:
-
Once the hardware update popup disappears, you can select the language. Click on 'English (United States)' to do so. You can then select the desired language and afterwards the location:
-

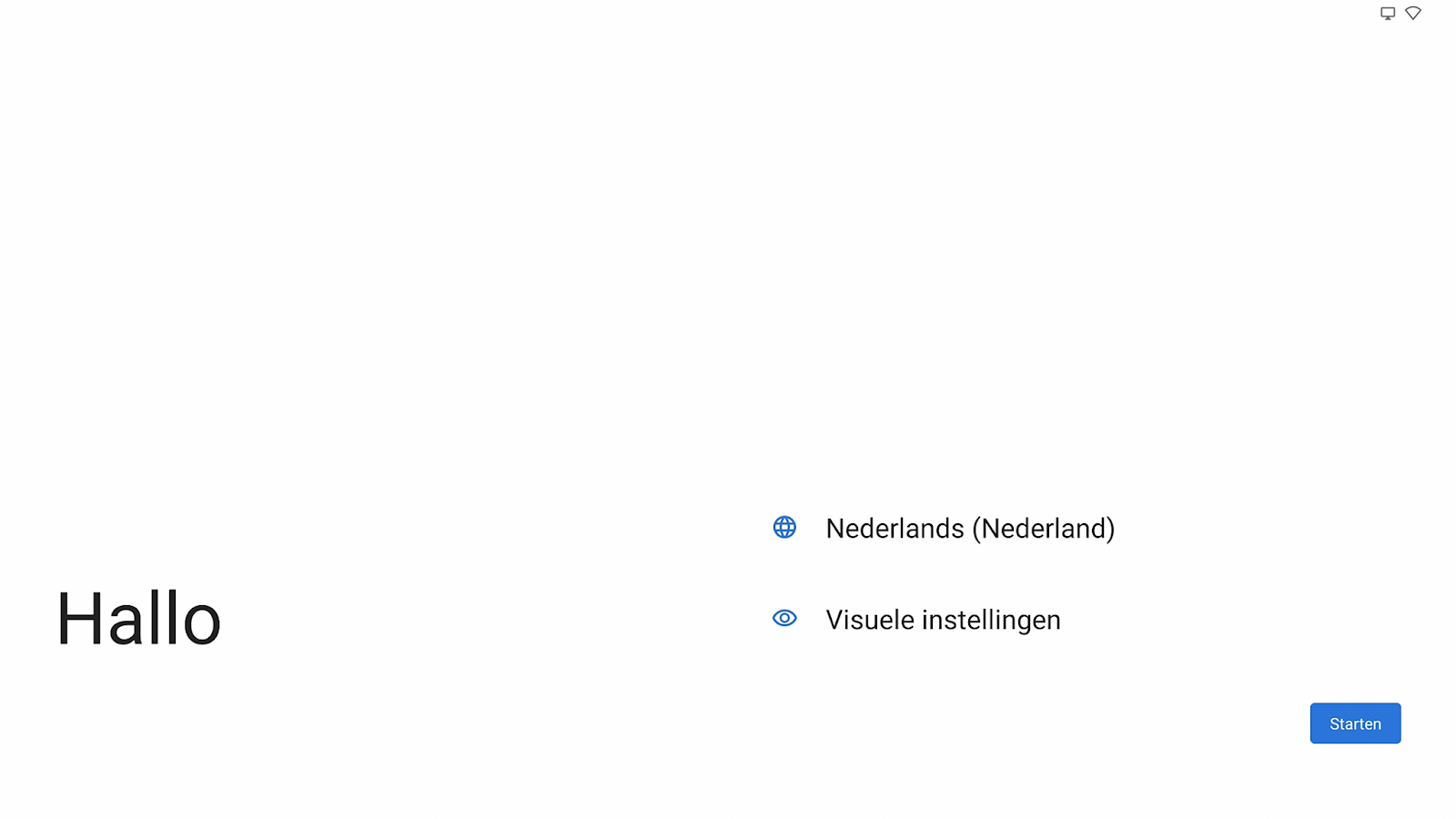

After selecting the language, press 'Start' to continue with the setup:
-

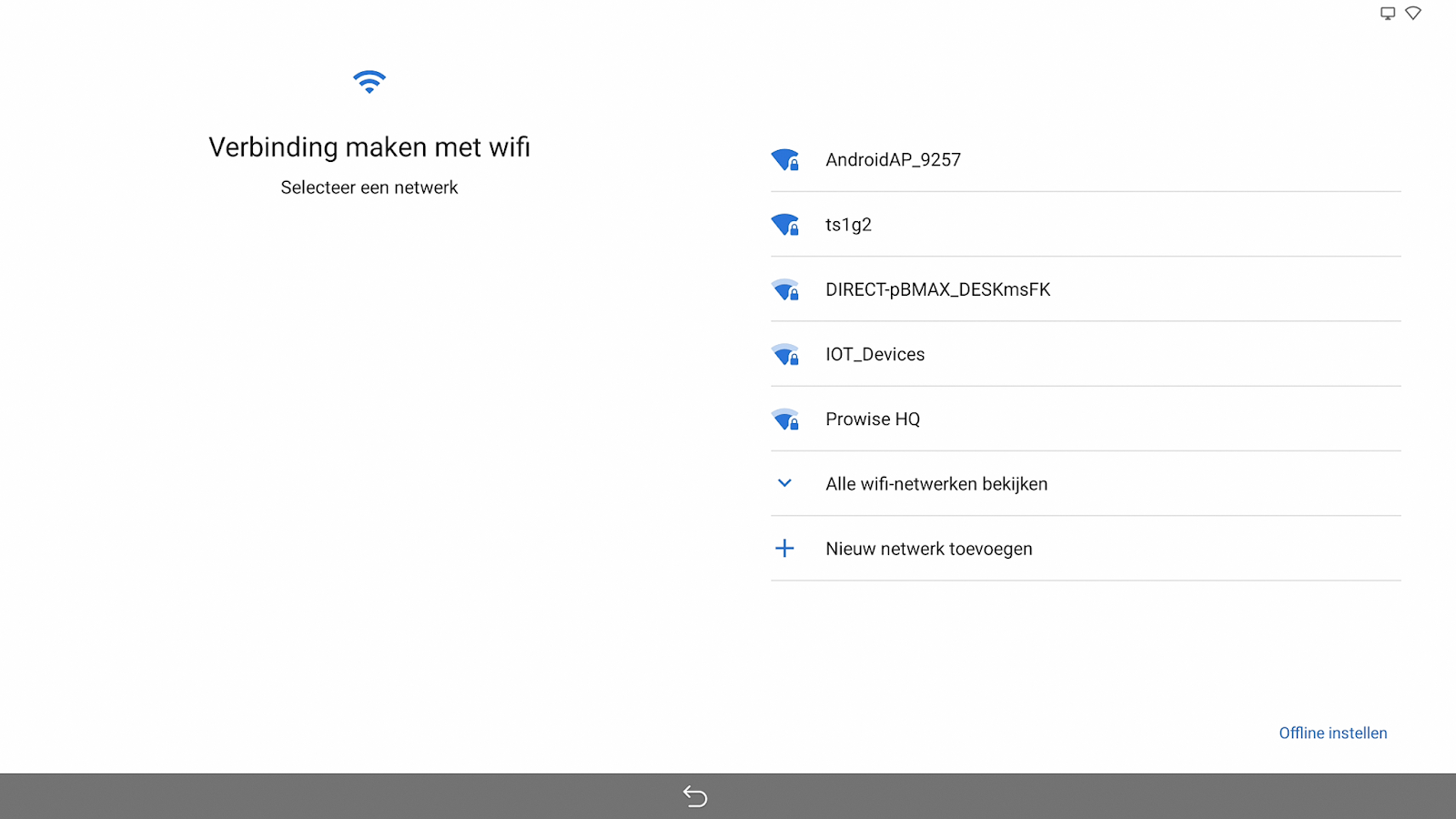

Click on the WiFi network to connect to the network:
-

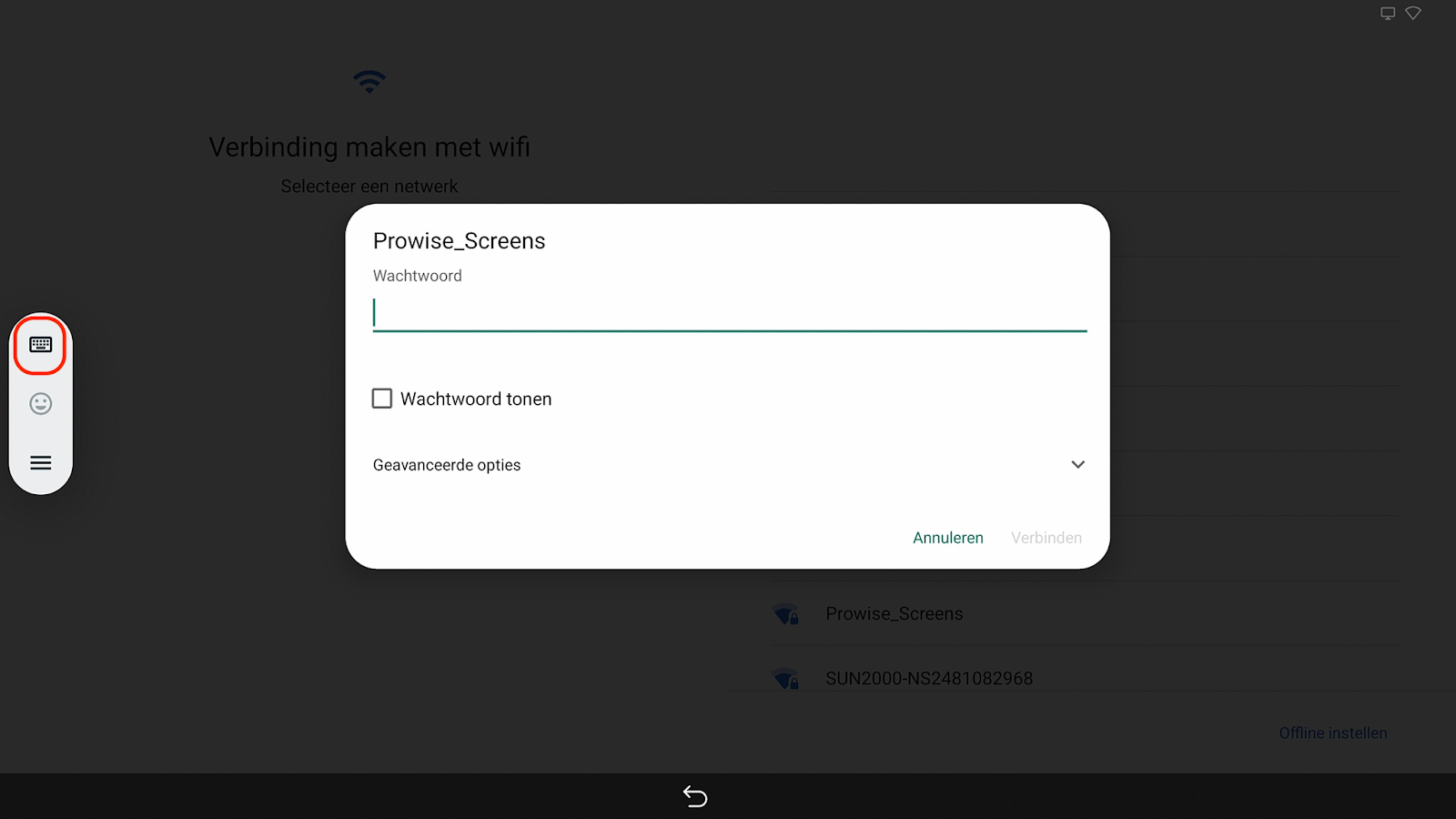

Click the keyboard icon on the left to open the on-screen keyboard so the WiFi password can be entered. Click 'Connect' after entering the password.
-

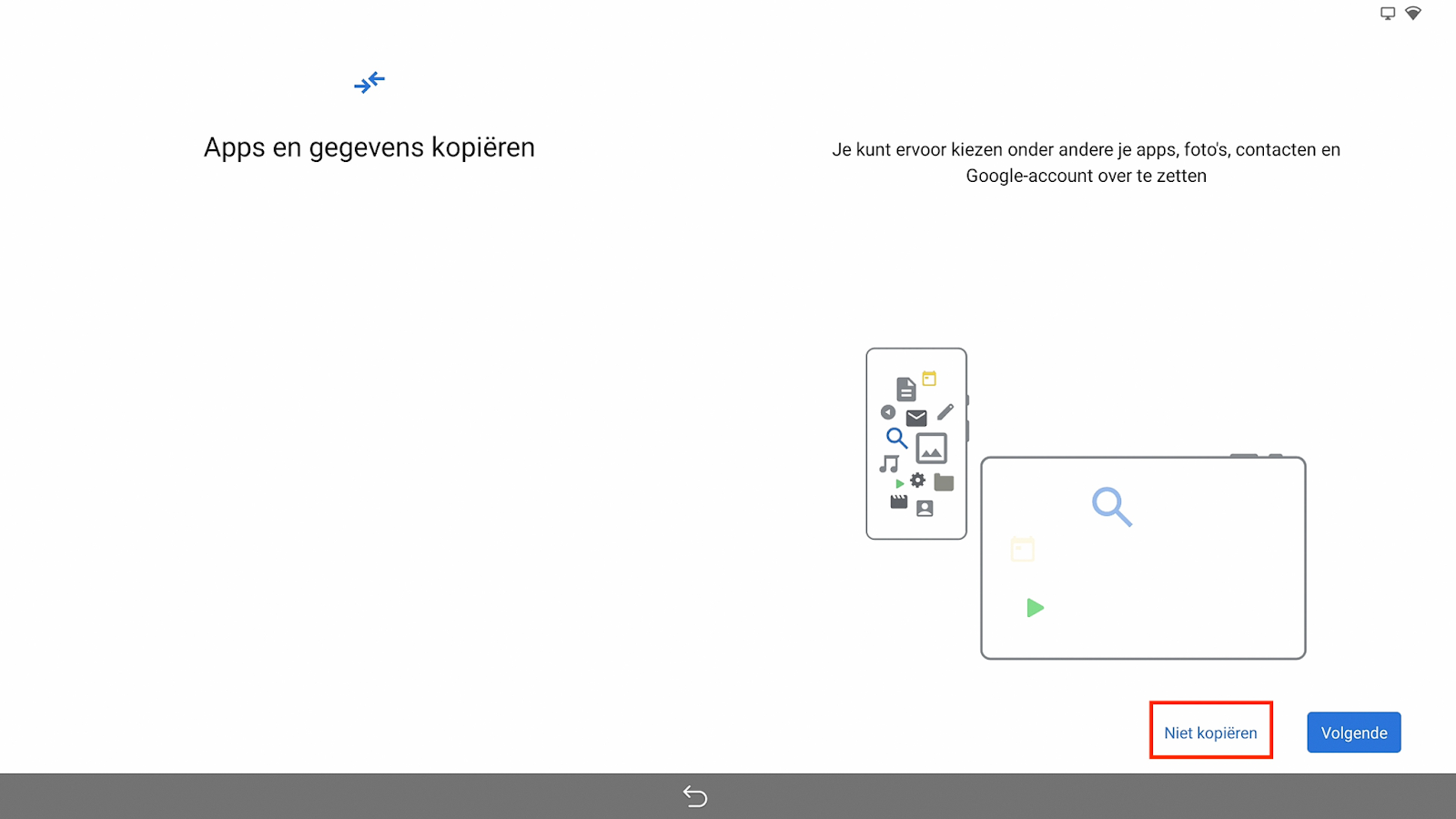

In the 'Apps and data copy' screen, click 'Don't copy'
-

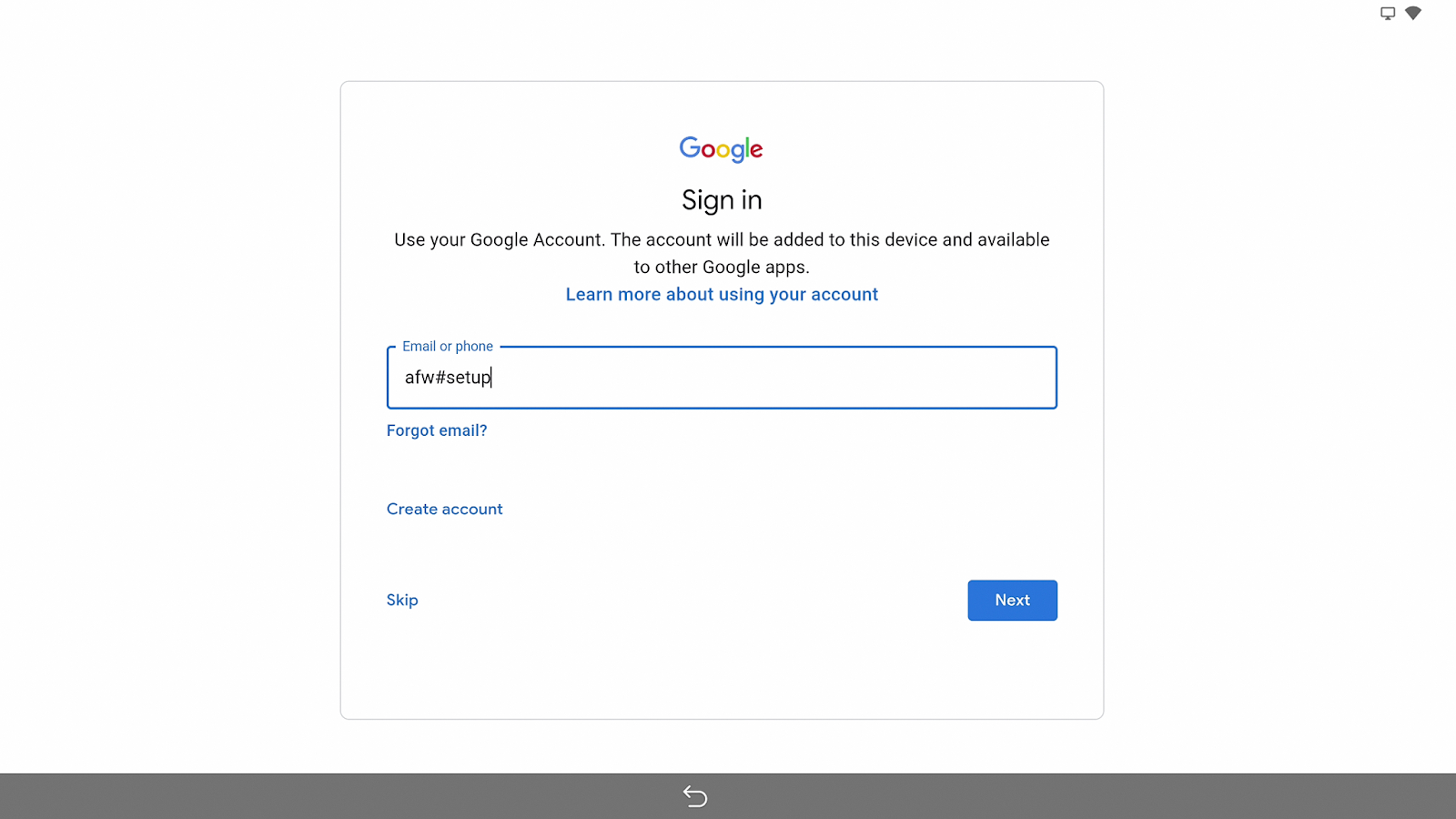

Enter ‘afw#setup’ in the ‘Email address or phone number’ field and click next.
-

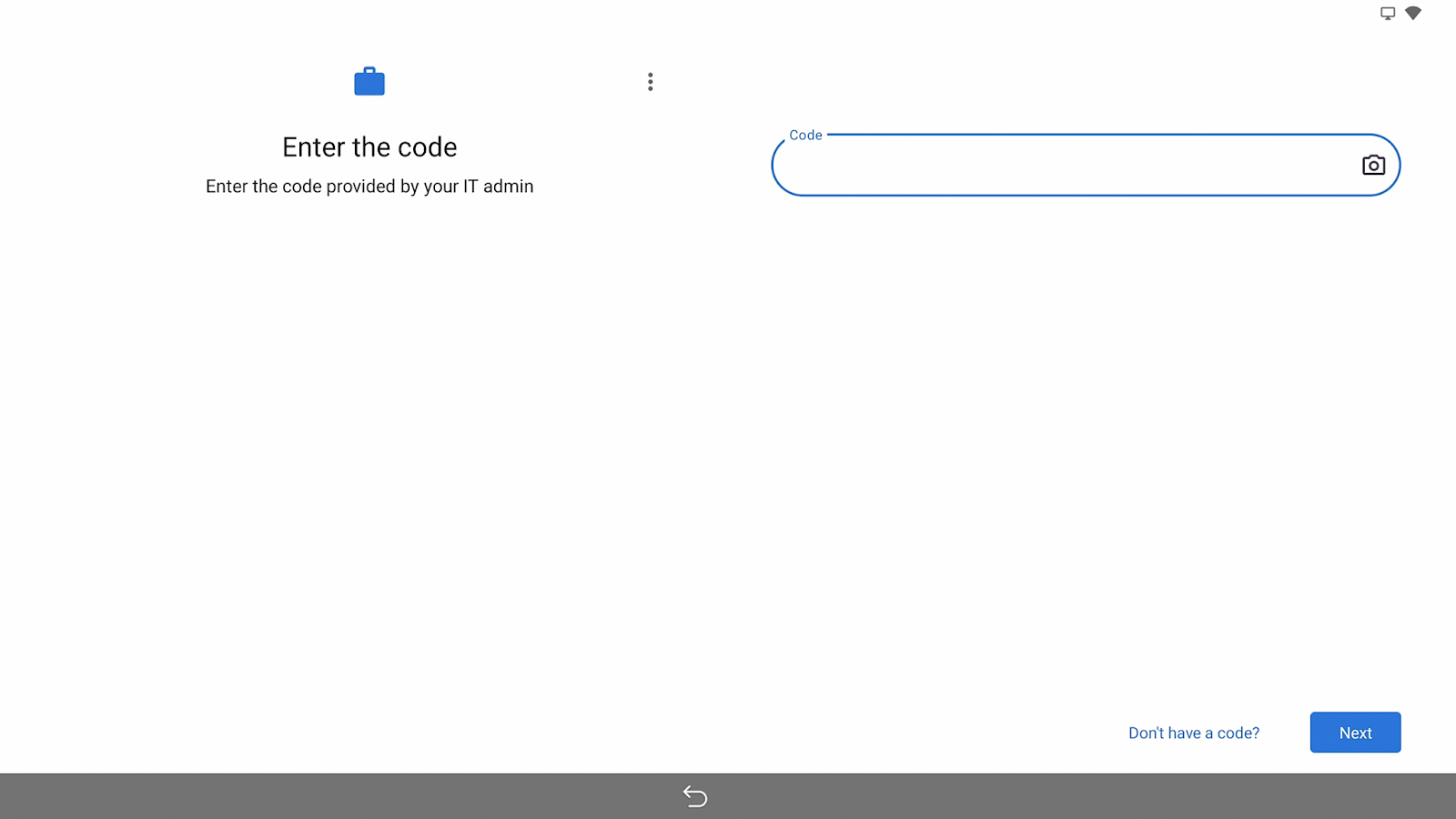

Enter the token generated in Screen Control and press Next.
You can find the code in Screen Control
-

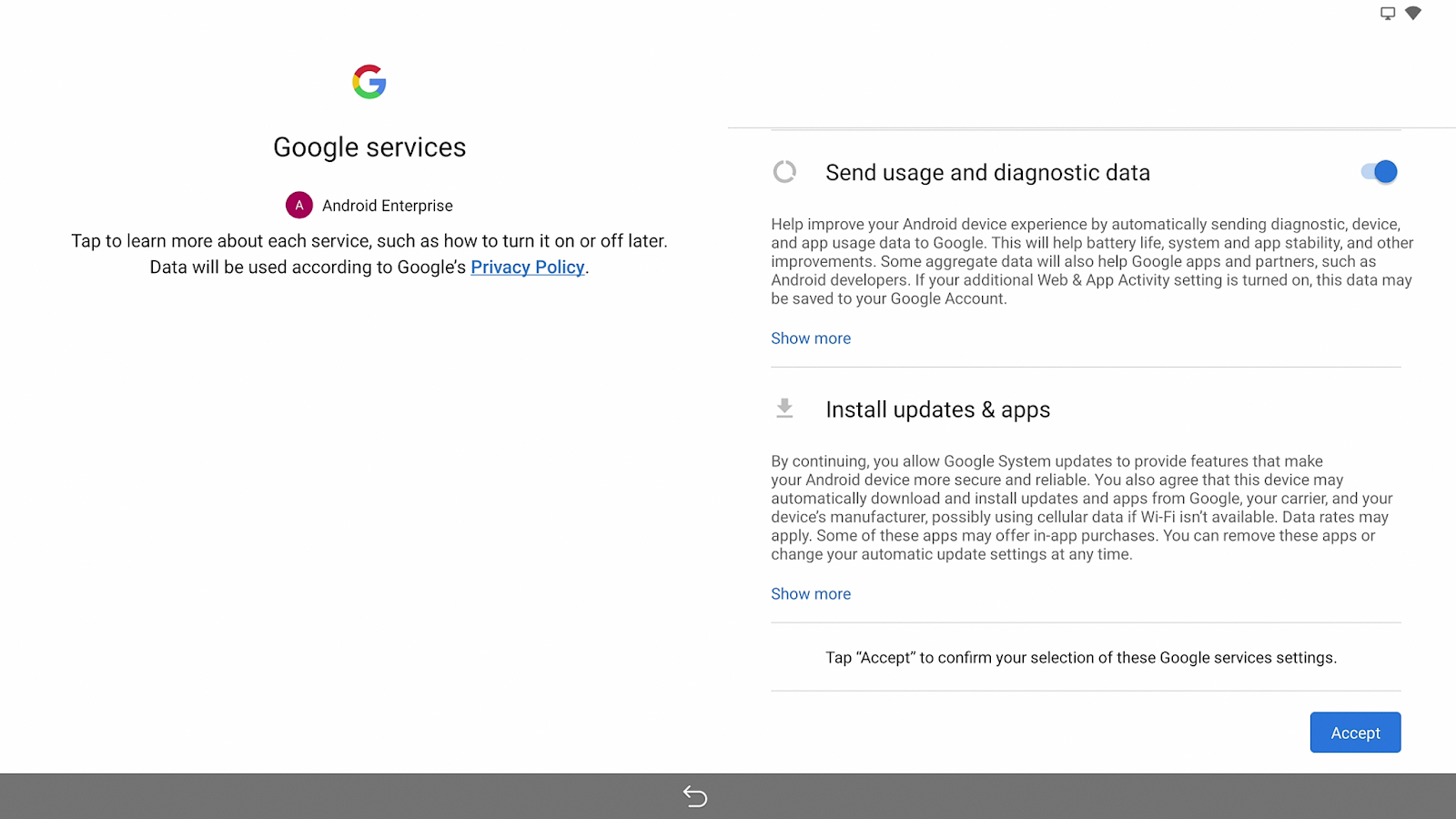

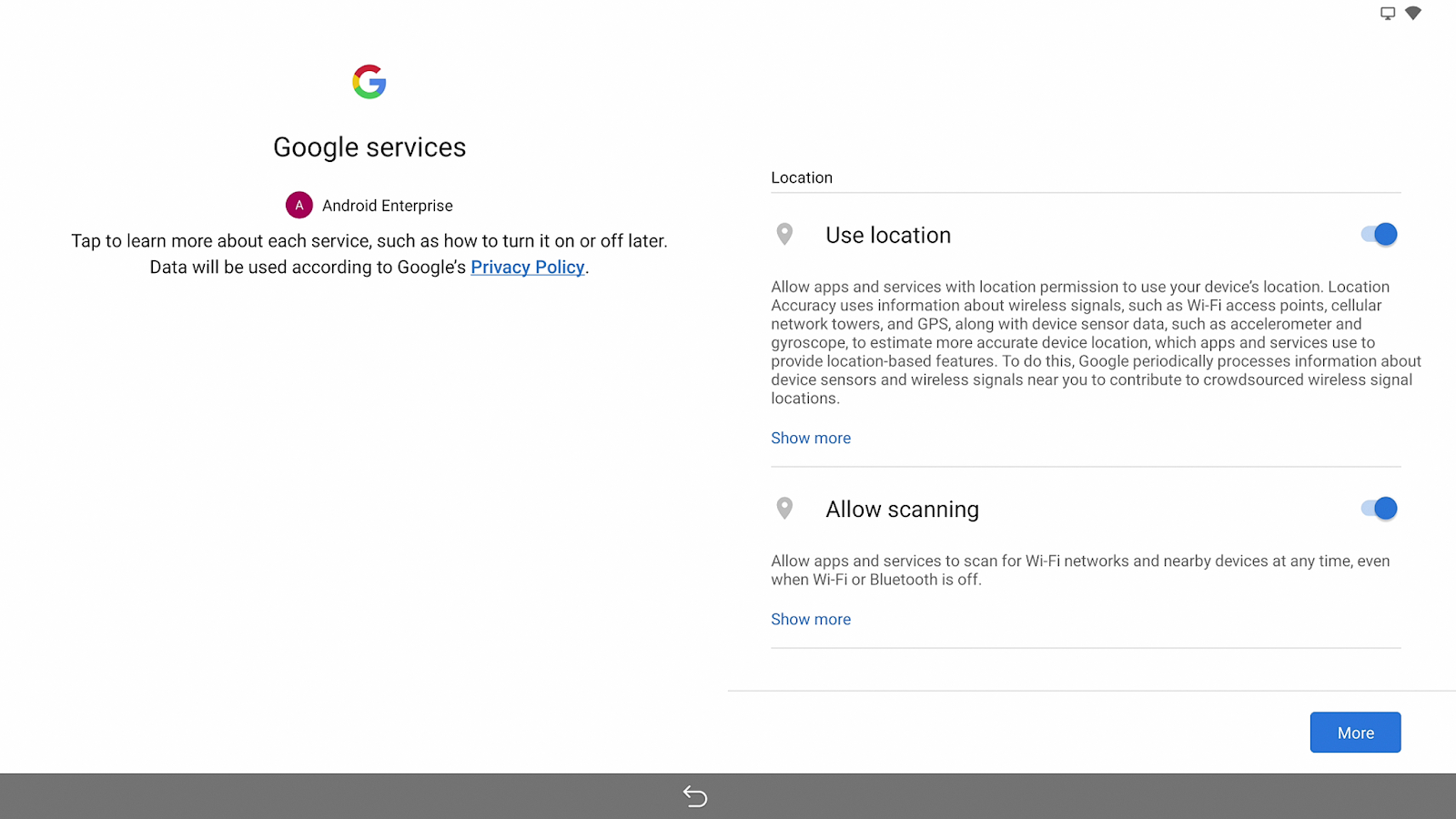

Click More to see all services and disable them if desired.
-
Click Accept to complete the registration.
-
The device will now register with Screen Control, download the assigned policies and apply the management configuration. This process may take a few minutes.
