How do I connect a lift system to the Prowise Touchscreen Max?

You can easily control your Prowise Neo or iPro lift system straight from the touchscreen. Here’s how to set it up.

Steps

1. Turn off the touchscreen before connecting anything.
2. Plug the USB 2.0 lift control cable into the port labeled “Lift System”.

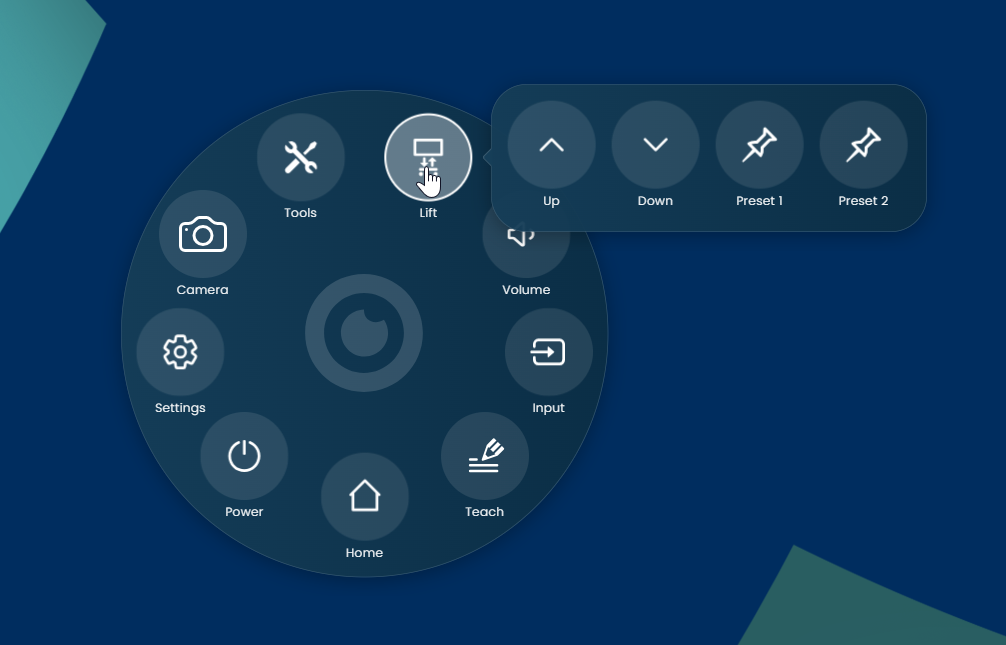

3. Power on the touchscreen — the Lift icon will appear in the QuickMenu.
4. Use the Up and Down buttons to adjust the height.
5. Long-press a preset button to save a custom height.

Note: Lift control features may vary depending on your lift model.
